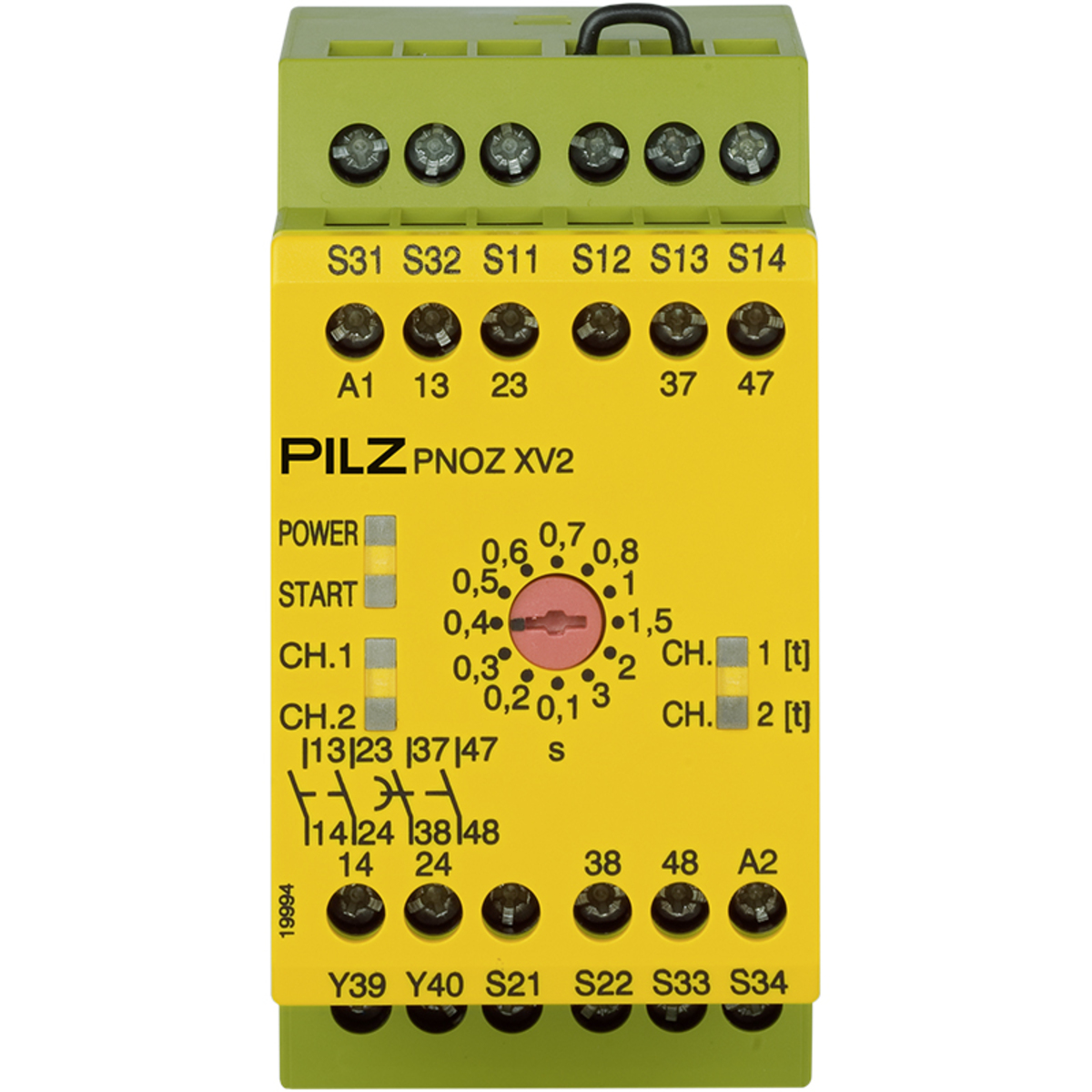

PNOZ Safety Relay 774502 for E-Stop and Safety Gate Monitoring

The PNOZ safety relay 774502 from Pilz is a standalone safety relay for machine protection circuits. It is also known as PNOZ XV2 3/24VDC 2n/o 2n/o t. This module supports E-stop monitoring and safety gate applications. Therefore, it is a useful spare part for machinery, packaging lines, production cells, and plant maintenance work.

Pilz 774502 uses a 24 V DC supply and provides 2 immediate safety contacts plus 2 delayed safety contacts. The delay-on de-energisation time can be set in 12 levels from 0.1 s to 3 s. In addition, the unit supports 1-channel or 2-channel wiring with or without detection of shorts across contacts. This helps engineers match different machine safety designs.

Key Features for Industrial Safety Panels

This PNOZ safety relay uses integrated screw terminals and a 45 mm housing width. It fits control cabinets that require reliable safety switching and clear replacement identification. Moreover, the relay contact design supports practical load switching for safety circuits. Before ordering, users should confirm the installed wiring, safety function, reset method, and required delay time.

• Model: 774502
• Product name: PNOZ XV2 3/24VDC 2n/o 2n/o t
• Brand: Pilz
• Product type: Standalone safety relay
• Supply voltage: 24 V DC
• Outputs: 2 N/O safety contacts and 2 delayed N/O safety contacts
• Applications: E-stop monitoring and safety gates
• Terminal type: Integrated screw terminals
• Width: 45 mm

Fast Quote for Pilz Safety Relay Replacement

HKXY Instruments can help buyers source Pilz safety relays, automation modules, control cabinet parts, and hard-to-find industrial spare parts. Also, our team can help compare the product ID and front label before shipment. Please send your required quantity, delivery country, and any photo of the installed module.

The PNOZ safety relay 774502 gives maintenance teams a practical replacement option when a machine needs stable safety circuit control. As a result, factories can reduce downtime and keep safety-related equipment ready for operation. Finally, contact us for stock status, lead time, and a commercial quotation.
