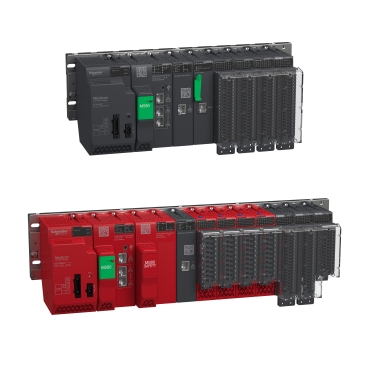

Schneider Modicon M580: Complete System Configuration & Selection Guide
Building a high-performance Modicon M580 ePAC system requires more than just a CPU. To leverage the full power of industrial Ethernet, your architecture must include the correct Ethernet Backplane (BME) and a stabilized Power Supply (CPS). As a leading supplier of Schneider Electric, Siemens, and Honeywell, we provide verified kits for BMEP58 and BMEH58 series to ensure 100% startup success.
All our Schneider hardware is Original New, factory-sealed, and comes with batch-consistent tracking. Whether you are building a standalone station or a Hot Standby Redundancy system, our stock is ready for Immediate Global Dispatch.
M580 Core Assembly Checklist:
| Component Type | Recommended Model | Function / Compatibility |
|---|---|---|
| Processor (CPU) | BMEP582040 / BMEP581020 | Main Control ePAC (Ethernet/IP) |
| Power Supply | BMXCPS3020 / BMXCPS2000 | 24VDC High Performance Power |
| Ethernet Backplane | BMXXBP0800 / BMXXBP1200 | 8/12 Slots with Ethernet Bus |
| Redundancy Kit | BMEH582040 / BMEH584040 | Hot Standby CPU for 0ms Downtime |
Optimized Setup: Why the Backplane Matters
Choosing the right chassis for your BMEP582040 ensures your network performance is maximized:
The BMXXBP series provides a dedicated Ethernet bus on the backplane, allowing your M580 to talk to remote I/O and SCADA with lightning speed.
Don’t starve your CPU. The BMXCPS3020 is the standard for M580 systems, providing stable current even during transient loads in industrial environments.
Ready Stock for Urgent Projects: We offer complete kits including SD Cards, terminal blocks, and bus connectors. Contact our team for a bundled discount today.
