High quality Rosemount 648 Wireless Temperature Transmitter 648 Rosemount
Origin Japan
Payment Terms: Paypal, Aliexpress, Western Union, T/T
MOQ: 1pcs
Specifications
High quality Rosemount 648 Wireless Temperature Transmitter 648 Rosemount

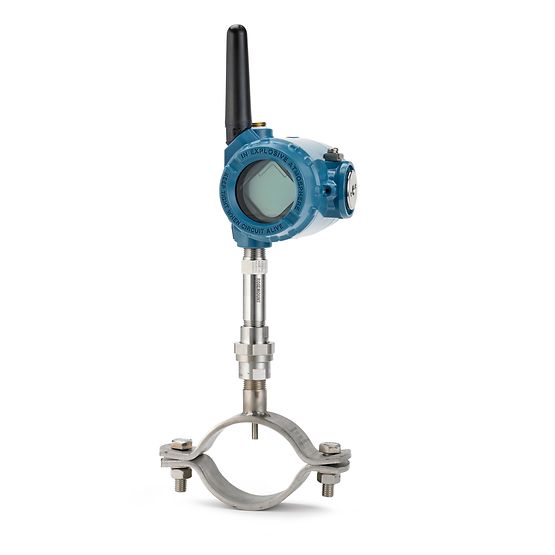

01. Overview of Rosemount 648 Wireless Temperature Transmitter 648 Rosemount
The Rosemount 648 Wireless Temperature Transmitter offers best-in-class wireless accuracy and stability for process monitoring. This durable transmitter is designed with a dual-compartment housing for field reliability. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature via an in-transmitter thermal conductivity algorithm, eliminating the need for a thermowell or process penetration.
02. Specifications of Rosemount 648 Wireless Temperature Transmitter 648 Rosemount
- Input
- Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
- Output Signal
- WirelessHART® protocol
- Housing
- Dual-compartment field mount
- Display/Interface
- Large LCD display with percent range graph
- Diagnostics
- Basic diagnostics including open/short sensor diagnostics
- Calibration Options
- Transmitter-sensor matching (Callendar-Van Dusen constants)
- Certifications/Approvals
- Hazardous location, marine type, see full specs for complete list of certifications
- Update Rate
- 1 sec. to 60 min., user selectable
- Power Module Life
- Up to 10-year life, field replaceable (order separately)
- Antenna Type
- External (standard and extended range)
03. Features of Rosemount 648 Wireless Temperature Transmitter 648 Rosemount
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Best-in-class wireless accuracy and stability for process automation
- Durable dual-compartment housing offers added field reliability
- Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
- Transmitter-sensor matching produces better accuracy, matching exact sensor characteristics with the transmitter
- LCD display offers access to measurement and diagnostic information in the field, enhancing process visibility
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
04. Selection Guide for Rosemount Temperature Transmitter:
Rosemount 3144P Rosemount Temperature Transmitter 3144P;
Rosemount 648 Wireless Temperature Transmitter 648 Rosemount;
Rosemount 644 Temperature Transmitter 644 Rosemount;
Rosemount 248 Wireless Temperature Transmitter 248 Rosemount;
Rosemount 148 Temperature Transmitter 148 Rosemount;
Rosemount 848T Temperature Transmitter 848T Rosemount
Welcome to buy High quality Rosemount 648 Wireless Temperature Transmitter 648 Rosemount, 100% orginal products with professional team for many years. Other products: Yokogawa EJA110E, Field instruments, Field communicator, etc.
